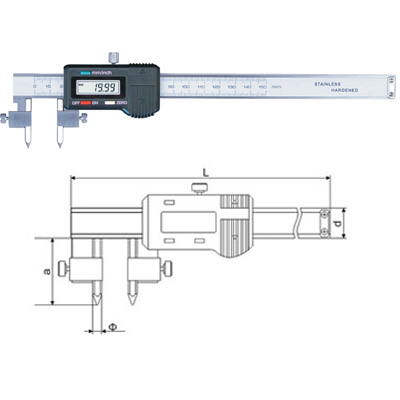

Centerline Digital Calipers
|
FEATURES ·Can measure the center distance between two holes. ·The caliper with presetting function for easy measuring is optional. |
| Range(mm/in) | Resolution | Permissible Error | a | d | φ | L1 | Order No. | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|
| 5-150mm | 0.01mm | ±0.03mm | 35 | 16 | 5 | 115-201 | $77USD | ||
| 5-200mm | 0.01mm | ±0.04mm | 35 | 16 | 5 | 115-202 | $93USD | ||
| 5-300mm | 0.01mm | ±0.05mm | 35 | 16 | 5 | 115-203 | $110USD | ||
| 10-500mm | 0.01mm | ±0.06mm | 50 | 24 | 10 | 115-205 | $255USD | ||
| 10-1000mm | 0.01mm | ±0.08mm | 50 | 31 | 10 | 115-210 | $430USD | ||
| 10-150mm | 0.01mm | ±0.03mm | 40 | 16 | 10 | 236 | 115-201-1 | $85.00USD | |
| 10-200mm | 0.01mm | ±0.04mm | 40 | 16 | 10 | 385 | 115-202-1 | $100.00USD | |
| 10-300mm | 0.01mm | ±0.05mm | 40 | 16 | 10 | 385 | 115-203-1 | $130.00USD | |
| 20-500mm | 0.01mm | ±0.06mm | 60 | 24 | 20 | 650 | 115-205-1 | $345.00USD | |
| 20-1000mm | 0.01mm | ±0.08mm | 60 | 31 | 20 | 1200 | 115-210-1 | $480.00USD |
