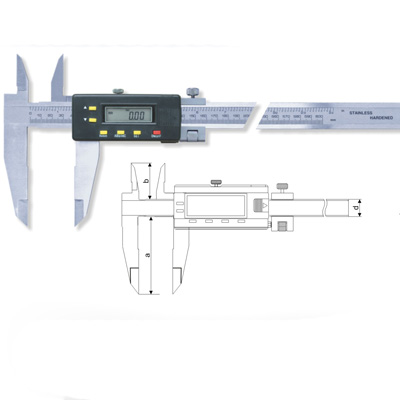

Digital Calipers with Knife-edge Jaws(Type B)

FEATURES


Both upper & lower jaw carry knife-edge measuring surface;


Immediate reading when measuring the inside diameter with upper jaws. No need to add the nib width.


With fine adjustment, but no depth bar;


With presetting function.


Zero-setting any position.


Data output.

Range(mm/in) Resolution Permissible Error a b d Order No. Price Buy Now
0-500mm 0.01mm ±0.05mm 100 45 24 111-405 $187.26USD
0-500mm 0.01mm ±0.05mm 150 60 31 111-405-1 $212.10USD
0-500mm 0.01mm ±0.05mm 200 60 31 111-405-2 $258.55USD
0-600mm 0.01mm ±0.06mm 100 45 24 111-406 $250.81USD
0-600mm 0.01mm ±0.06mm 150 60 31 111-406-1 $313.39USD
0-800mm 0.01mm ±0.07mm 150 60 31 111-408 $442.42USD
0-1000mm 0.01mm ±0.07mm 150 60 31 111-410 $479.36USD
0-1500mm 0.01mm ±0.11mm 150 70 42 111-415 $822.58USD
0-2000mm 0.01mm ±0.14mm 200 70 42 111-420 $1753.07USD
