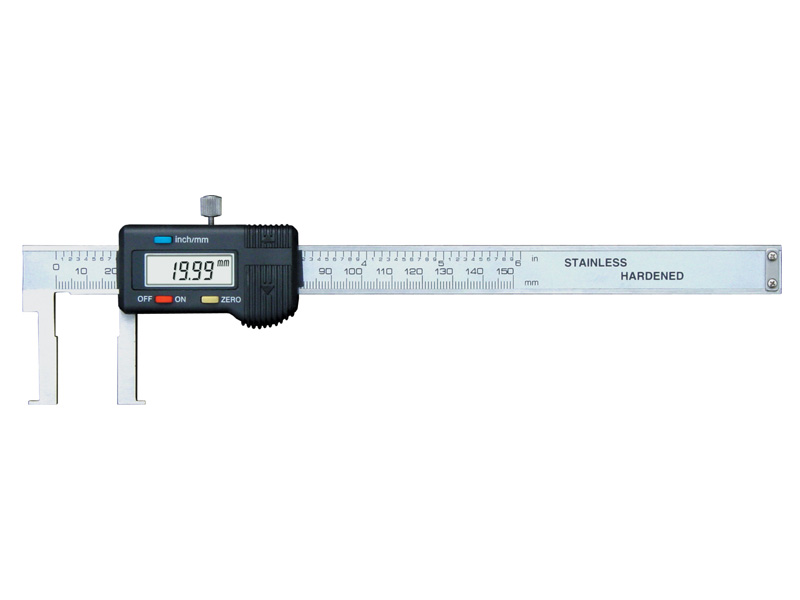

Inside Groove Calipers with Flat Points (Digital Type)

FEATURES

·Can measure narrow grooves in a hole.

·Elctronic components with presetting functions can make measurement convenient and represet after the measuring faces are worn.

·Special order requires the following data:

1.The diameter of the hole.

2.The distance from the groove to the orifice.

3.The width of the groove.

4.The depth of each groove.

5.The shape of the groove bottom.

Range	Resolution	Permissible Error	L1	a	b	c	d	e	f	Order No.	Price
25-200mm	0.01mm	±0.04mm		46	40	1	16	5	12.5	113--202	$80USD
40-200mm	0.01mm	±0.05mm		76	70	1.5	16	7	20	113-202-1	$95USD
30-300mm	0.01mm	±0.05mm		56	50	1.5	17	5	15	113-203	$103USD
50-300mm	0.01mm	±0.06mm		86	80	1.5	17	8	25	113-203-1	$123USD
40-500mm	0.01mm	±0.06mm		100	90	1.5	24	5	20	113-205	$203USD
60-500mm	0.01mm	±0.07mm		130	120	2	24	10	30	113-205-1	$244USD
35-150mm	0.01mm	±0.05mm	250	66	60	1.5	16	6	17.5	113-201-1	$81USD
22-150mm	0.01mm	±0.04mm	250	36	30	1	16	5	11	113-201	$79USD
80-500mm	0.01mm	±0.07mm		160	150	3	24	16	40	113-205-2	$292USD

Connie Conway on December 20, 2011, 1:58 pm

Hello, Can you tell me how thick the "feet" on this caliper are? Thanks, Connie Conway ATMI Packaging
