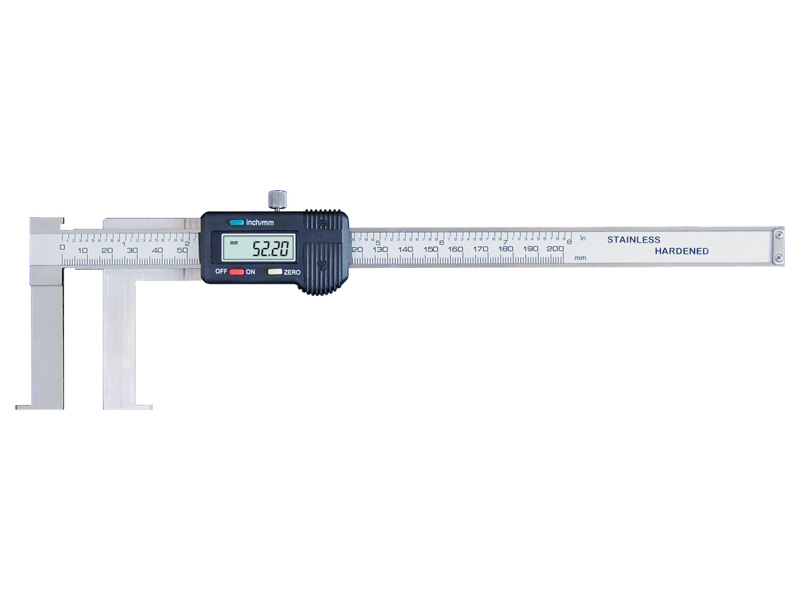

Inside Groove Calipers with Knife Points (Digital Type)

FEATURES

·Cross-interaction Jaws achieve to a small inside hole


·Electronic components with presetting functions can make measurment convenient and represet after the measuring faces are worn.

·Special-made required following data
1.The diameter of the hole
2.The distance from the groove to the orifice
3.The width of the groove
4.The depth of one-sided groove
5.The shape of the slot base

Range Resolution Permissible Error a b c d e Order No. Price Buy Now
14-150mm 0.01mm ±0.03mm 30 12 1 16 5 113-101 $79USD
19-150mm 0.01mm ±0.05mm 60 60 2 16 6 113-101-1 $81USD
25-150mm 0.01mm ±0.05mm 90 23 3 20 8 113-101-2 $95USD
15-200mm 0.01mm ±0.04mm 40 13 1 16 5 113-102 $95USD
23-200mm 0.01mm ±0.05mm 70 20 2 16 7 113-102-1 $99USD
29-200mm 0.01mm ±0.05mm 100 27 3 20 10 113-102-2 $115USD
17-300mm 0.01mm ±0.05mm 50 15 1.5 17 5 113-103 $120USD
16-300mm 0.01mm ±0.06mm 80 24 2.5 17 8 113-103-1 $123USD
33-300mm 0.01mm ±0.06mm 110 31 3.5 20 12 113-103-2 $148USD
25-500mm 0.01mm ±0.06mm 90 23 2 24 6 113-105 $203USD
35-500mm 0.01mm ±0.07mm 120 33 3 24 8 113-105-1 $244USD
47-500mm 0.01mm ±0.07mm 150 45 3 24 20 113-105-2 $292USD
