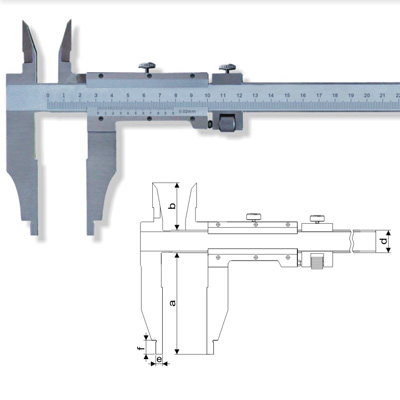

Vernier Calipers with Two Types of I.D Jaws(Type E)

FEATURES


Inside measuring can be read directly when measuring the inside diameter with upper jaws. No need to add the nib width to the reading.


The radiused measuring faces are fit for accurate inside measurement.


Long jaws for measuring hard-to-reach parts.


With fine adjustment, but without depth bar.


Can measure outside diameter (O.D),inside diameter(I.D),and steps.

Range(mm/in) Vernier Reading Permissible Error a b d e f Order No. Price Buy Now
0-500mm 0.02mm ±0.05mm 100 60 31 10 24 141-565 $234.52USD
0-600mm 0.02mm ±0.05mm 100 45 24 10 28 141-566 $253.23USD
0-1000mm 0.02mm ±0.07mm 125 60 31 10 24 141-570 $793.55USD
